Azure Event Hubs is a big data streaming platform and event ingestion service. It can receive and process millions of events per second. Data sent to an event hub can be transformed and stored by using any real-time analytics provider or batching/storage adapters.
Event Hubs contains the following key components:
- Event producers: Any entity that sends data to an event hub. Event publishers can publish events using HTTPS or AMQP 1.0 or Apache Kafka (1.0 and above)
- Partitions: Each consumer only reads a specific subset, or partition, of the message stream.
- Consumer groups: A view (state, position, or offset) of an entire event hub. Consumer groups enable consuming applications to each have a separate view of the event stream. They read the stream independently at their own pace and with their own offsets.
- Throughput units (standard tier) or processing units (premium tier) or capacity units (dedicated): Pre-purchased units of capacity that control the throughput capacity of Event Hubs.
- Event receivers: Any entity that reads event data from an event hub. All Event Hubs consumers connect via the AMQP 1.0 session. The Event Hubs service delivers events through a session as they become available. All Kafka consumers connect via the Kafka protocol 1.0 and later.

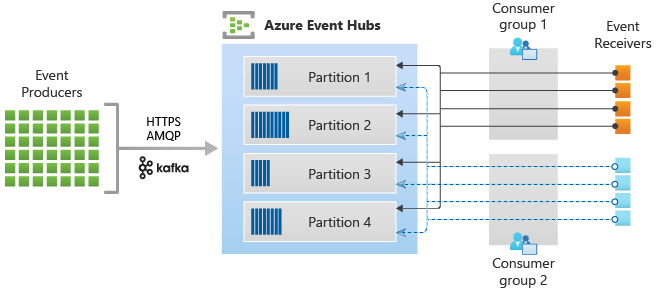

The following figure shows the Event Hubs stream processing architecture:
